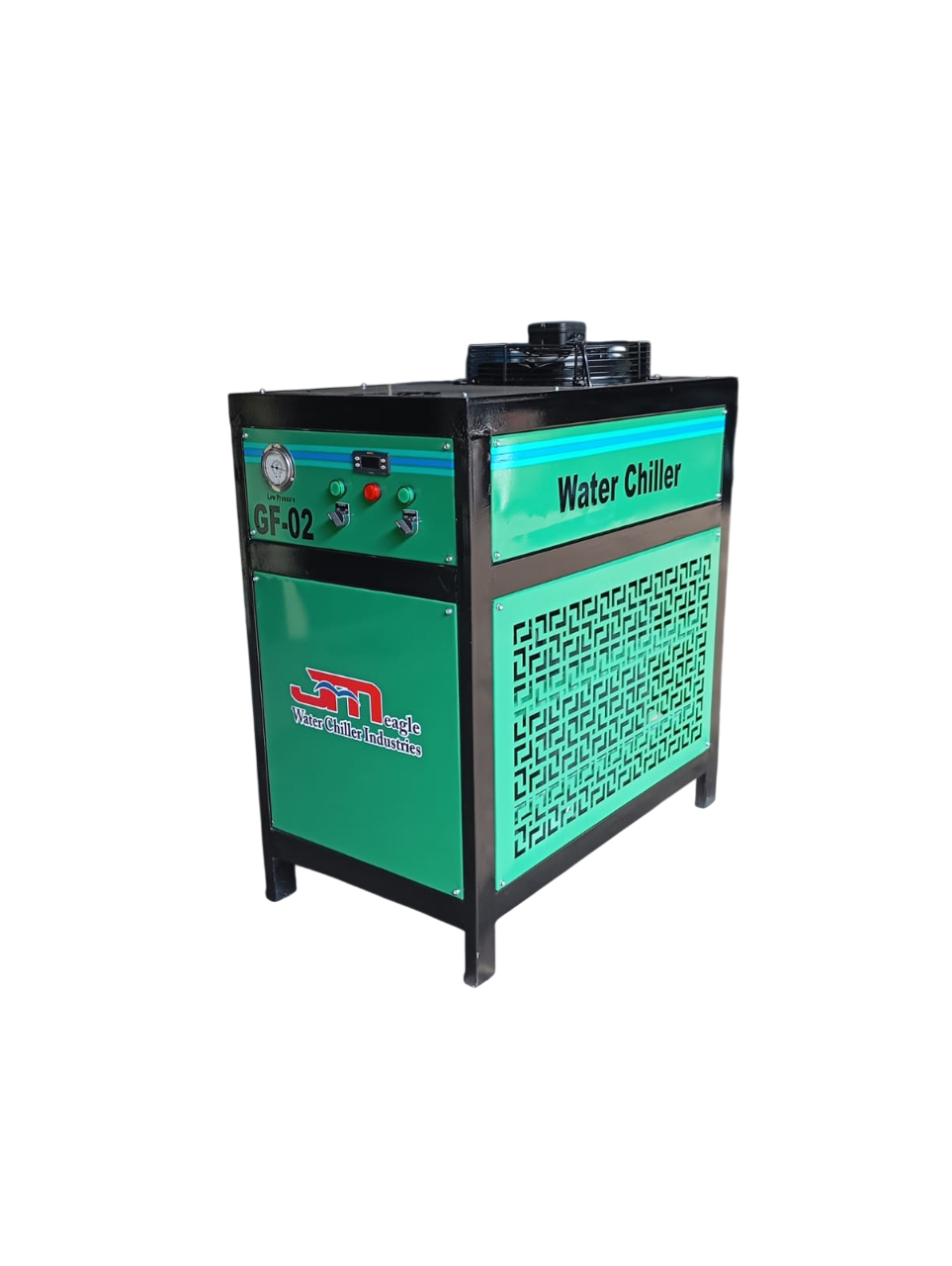

Water Chiller GF - 02
Rp 22,000,000
Spesifikasi Teknis JMeagle Water Chiller (Model: GF - 02)
Model Name: GF - 02
Cooling Capacity: 4.541 Kcal/H
Nominal Capacity: 5,28 Kcal/H
Total Input Power: 2,27 Kw
Maximum Operating Current: 62 A
Power Supply: 1 Phase - 220V - 50 Hz
❄️ Sistem Refrigerant & Komponen Utama
Refrigerant:Type: R401A / R32
Filling Volume: 40 Kg
Type of Control: External Balance Thermostatic Capillary
Compressor Type: Rotating
Power: 1,52 Kw
Start Method: Direct
Evaporator Type: Water Tank With Cool (Shell & Tube)
Chilled Water Flow: 0,91 m3/h
Inlet and Outlet Pipe Diameter: 0,5 Inch
Condensor:Type: Finned Cooper Tube + Low Noise Outer Rotor Fan
Air Flow: 2.000 $m3/h
Pump:Type: Shimizu / OtherChilled Water Flow: 0,37 m3/h
Inlet and Outlet Pipe Diameter: 1/2"
🛡️ Fitur Keamanan (Safety Protection)
Compressor overheat protection Unit overload protection device High and low pressure protection Antifreeze protection device Power supply reverse phase / lack of phase protection Fusible plug Water flow switch
📐 Dimensi & BeratSize (Dimensi):
Length (L): 2.200 mm
Breadth (B): 1.700 mm
Height (H): 2.000 mm
Unit Weight (Berat Kosong): 73 Kg
Running Weight (Berat Operasional): 73 Kg
